  Product navigation switch

Ts dewatering screen

pro14-2

Features & Benefits

1. Advanced structure, light weight, high dehydrating ratio with new type vibrating motors.
2. Simple structure, easy maintenance.
3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance.
4. Polyurethane screen (PU) high screening ratio, big capacity,long service life and no blocking.
5. Widely used, less replacement parts.

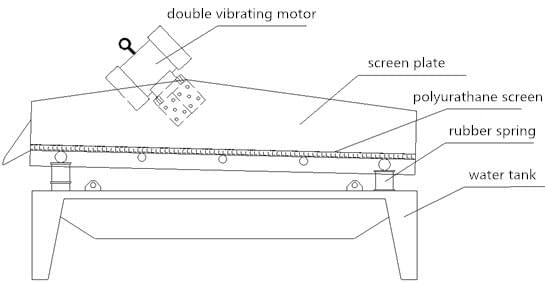

Working principle

pro14-3

Dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
TS0918 ≤10 10-20 900*1800 1.62 0.75*2 1890*1290*1080
TS0924 ≤10 10-20 900*2400 2.16 1.1*2 2480*1290*1220
TS1224 ≤10 20-40 1200*2400 2.88 2.2*2 2480*1590*1430
TS1230 ≤10 20-40 1200*3000 3.6 2.2*2 3080*1590*1500
TS1236 ≤10 20-40 1200*3600 4.32 3.0*2 3680*1590*1500
TS1530 ≤10 30-60 1500*3000 4.5 3.0*2 3080*1890*1440
TS1536 ≤10 30-60 1500*3600 5.4 3.0*2 3680*1890*1450
TS1836 ≤10 60-80 1800*3600 6.48 5.5*2 3720*2420*1930
TS1842 ≤10 60-80 1800*4200 7.56 5.5*2 4370*2420*2100


All product information including pictures, types, data, performance, specifications on this website is for your reference only. Adjustment of above-mentioned contents may take place. You can refer to the real products and product manuals for some specific messages. Except the special explanation, data interpretation right involved in this website is owned by LZZG.
